PRODUCT DESCTIPTION

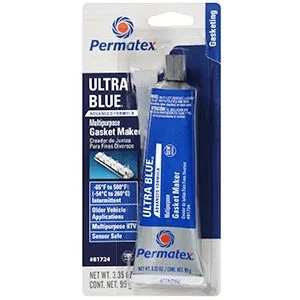

Permatex Ultra Blue RTV Silicone Gasket is a single

component, room temperature vulcanizing gasket

ing compound designed to provide reliable "forme

d-in-place" gaskets for mechanical assemblies. This

material cures on exposure to moisture in the air to

form a tough, flexible,silicone rubber gasket. The pr

oduct resists aging, weathering  and thermal cycling

without hardening, shrinking or cracking. Designed

for superior bonding properties to oil contamintaed

metals as compared to other formed-in-place gasket

s, and maintains outstanding oil resistance, NSF Whit

e Book registered.

PRODUCT BENEFITS

● Sensor safe, non-corrosive

● Superior adhesion and flexibility

● Improved oil resistance

● Replaces most cut gaskets

● Low odor

● Can be used as a gasket maker or dressing

● Non-flammable, Non-toxic

TYPICAL APPLICATIONS

● Pump housings

● Machine tools

● Compressors

● Gearboxes

● Transmission pans

● Valve covers

● Oil pans

DIRECTIONS FOR USE

For assembly as form-in-place gasket

1.Remove all previous material from mating surfaces.

   Permatex Gasket Remover is recommended for mo

   st materials.

2.For best results, clean and dry all surfaces wiht a res

   idue-free solvent,such as Permatex Brake and Parts

   Cleaner.

3.Cut nozzle to desired bead size, 1/16 to 1/4 in dia

   meter, A 1/8 bead is usually sufficient for most

   applications.

4.Remove cap,puncture tube or cartridge seal and

   attach extension nozzle.

5.Apply a continuous 1/16 inch to  1/8 inch bead of

   silicone to one surface, first tracing the internal

   areas of the gasket configuration, then all surroun

   ding bolt holes.

6.Assemble parts immediately while silicone is still wet.

7.Finger tighten flange only until material begins to seep

   out the sides of the flange.

8.Allow to set for at least two hours and re-torque at lease

   one quarter to one half turn.

9.For best results, allow to cure overnight.

For assembly as gasket dressing

1.Repeat steps 1 thru 4 as in previous section.

2.Apply a thin film of silicone to one surface to be sealed.

3.Place the pre-cut gasket onto silicone film.

4.Apply a second thin film to pre-cut gasket surface.

5.Remove any excess and assemble parts immediately.

   Note:Product not recommended for use as a cylinder

    head gasket or head gasket sealant.

Instructions for PowerBead

1.Clean and dry all flange surfaces to be sealed.

2.Remove black cap from top of extension nozzle

3.Turn nozzle extension one complete turn (360)

    counterclockwise

4.Depress finger trigger and apply a continuous 1/16

   inch to 1/8 inch PowerBead to one surface.

5.Assemble parts immediately while silicone is still wet

6.Finger tighten flange only until material begins to seep

   out the sides of the flange.

7.Allow to set for at least  two hours and re-torque at least

   one close, turn extension nozzle clockwise until tight

   (about one full turn). Wipe off excess material from nozzle

   and replace black cap.

For Cleanup

1.Remove uncured product from parts and hand-tools with

   Permatex Fast Orange Wipes or Fast Orange Hand

   Cleaners. If skinned over, break film with a dry cloth to

    remove as much as possible.Remove the remaining

    material with Permatex Gasket Remover.

2.Clean hands with a dry cloth or Permatex Fast Orange

   hand cleaner.

Storage of Unused Product

1.Create a "Silicone Plug" by allowing excess material to

   extend beyond the extension nozzle or aerosol tip to

   cure, sealing and protecting the remaining product from

   moisture, For reuse, simply remove the cured product

   from the tip.

2.For PowerBead dispensers, you may store remaining

   product using either the above "silicone plug" method or

   using the included plastic cap.
