Permatex Form A Gasket 泰阳牌二号密封剂8009、 80015、 80010 、80016、 80011

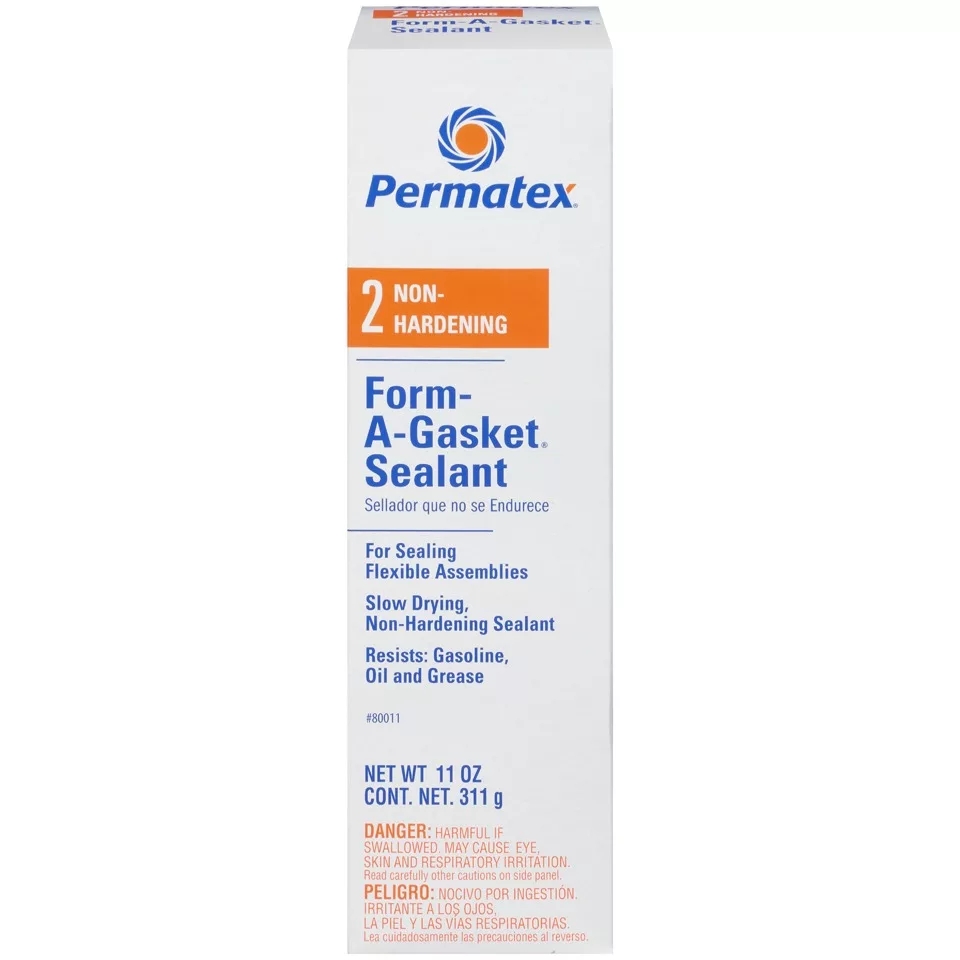

Permatex Form A Gasket NO.2 Sealant

泰扬牌Form A Gasket 二号密封剂


一款值得信赖的垫圈密封剂/涂层/涂覆剂。它适用于一些非钢性、易振动的装配,形成一层柔韧性膜需要比较久的时间,它的最高适用温度可达204℃。耐各种溶剂特别是汽油。符合军标MIL-S-45180 D, TYPE II .



包装规格

型号

包装规格

每箱数量

产品代号

80009

1.5盎司卡式管装

12

2A

80015

1.5盎司卡式管装

12

2AR

80010

3盎司卡式管装

12

2B

80016

3盎司卡式管装

12

2BR

80011

11盎司卡式管装

12

2C


Technical Data Sheet

Permatex Form A Gasket No 2 Sealant


PRODUCT DESCRIPTION:

Permatex Form A Gasket No 2 Sealant is a black, viscous

paste with a characteristic alcoholic odor. It is a slow dryi

ng, flexible setting paste that changes to a pliable, non-ha

rdening film through solvent evaporation. It seals flanges,

fittings, connections and flexible assemblies against leaka

ge, It increases the reliability of gasket seals. Conforms to

MIL-S-45180D,Type II.


PRODUCT BENEFITS:

● Improves reliability

● Extends gasket life

● Stops leakage

● Excellent for metal to metal assemblies

● Slow drying

● Flexibel setting


TYPICAL APPLICATIONS:

● Threaded connections

● Cover plates

● Hose connections


DIRECTIONS FOR USE:

   1.Remove all previous material from mating surfaces.

      Permatex Gasket Remover is recommended for mos  ls,

      not for plastics or painted surfaces.

   2.For best results, clean and dry all surfaces with a resid

      ue-free solvent, such as Permatex Brake and Parts Cleaner.

   3.Remove cap, puncture tube or cartridge seal and attach

      extension nozzle (if provided).

   4.When used as a gasket dressing, spread product with a

      spatula to a uniform film on one side of gasket and then

      position it on the assembly, Coat the second side of gas

      ket and re-assemble, Slower drying formula increases

      work time.

   5.Assembly is operational after 4 hours, full cure is affected

      after 24 hours.


For Cleanup

  1. The product can be removed from metal surfaces with

    isopropyl alcohol. If the sealant has been dried for a long

    time or at high temperatures, cover the sealant with alcohol

    and allow to soften overnight.

  2. Clean hands with Permatex brand hand cleaners.


PROPERTIES OF UNCURED MATERIAL

                                                         Typical Value

Chemical Type                       Modified resin, filler&alcohol

Appearance                                      Black paste

Odor                                                 Alcoholic

Specific Gravity                                     1.5

Viscosity                                        Viscous paste

Flash Point                                     Does not apply



TYPICAL CURING PERFORMANCE:

Permatex Form A Gasket No 2 Sealant once applied,

develops a semi-flexible seal by solvent evaporation.

Dry times will vary with temperature ,humidity and gap.


TYPICAL ENVIRONMENTAL RESISTANCE

Temperature Resistance        Typical Values

Continuous,℃(℉)              -54 to 204   (-65 to 400)


Chemical/Solvent Resistance

The product retains effective properties in contact with water,

ethylene glycol, gasoline ,mator oil, transmission fluid and sea

water.

GENERAL INFORMATION

This product is not recommended for use in pure oxygen

and/ or oxygen rich systems and should not be selected as

a sealant for chlorine or other strong oxidizing materials.


For safe handling information on this product, consult the

Material Safe Data Sheet,(MSDS).


STORAGE

Products shall be ideally stored in a cool, dry location in

unopened containers at a temperature between 8 to 28℃

(46 to 82℉)unless otherwise labeled. Optimal storage is at

the lower half of this temperature range, To prevent

contamination of unused product, do not return an material to

its original container.


NOTE:

The data contained herein are furnished for information only

and are believed to be teliable, We can not assume responsilili

ty for the results obtained by others over whose methods we

have no control, Permatex, Inc,specifically disclaims all warranties

expressed or implied, including warranties of merchantability

or fitness for a particular purpose, arising from sale or use of

Permatex ,Inc., products and disclaims any liability for consequ

ential or incidental damages of any kind, including lost profits.

This product may be covered by one or more United States or

foreign patents or patent applications.



避免与皮肤及眼睛直接接触,请于使用时戴上塑胶手套及安全护目镜。

若因接触皮肤引起过敏及红斑,请以肥皂及清水沖洗;若不慎触碰到眼睛时,请立即以清水沖洗并就医诊查

勿吞食、勿让孩童取用。

使用本材料的工作环境须通风良好,勿在密闭空间使用。
