PRODUCT DESCRIPTION

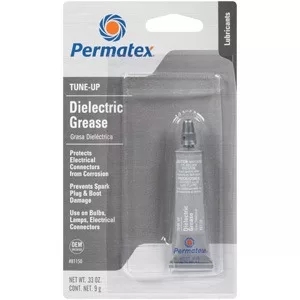

Permatex Dielectric Tune-Up Grease is a silicone dielectric

compound whose dielectric and lubricitous properties faci

litate and improve tune-ups. The compound prevents volt

age

leakage around any electrical connector thereby insuring

a strong spark in high energy automotive ignition systems.

The compound is an excellent lubricant on rubber, plastic

and ceramic surfaces and it also has good high temperature

properties, thus preventing fusing of spark plug boots to the

spark plug, It will make installation of the boots easier.

PRODUCT BENEFITS

● Improves connections

● Prevents corrosion

● Prevents fusing of spark plug boots

● High tempetature properties

● Excellent rubber lubricant

TYPICAL APPLICATIONS

● Spark plug boots

● Distributor cap nipples

● Battery terminals

● Ignition coil connectors

● Headlamp connectors

● Trailer electrical connectors

DIRECTIONS FOR USE

For spark plug boots

1.Make sure ignition system is off.

2.Remove heavy grease, dirt or oil with a clean rag.

3.Coat inside of spark plug boot with a thin layer of

   grease.

4.Coat ceramic part of plug.

5.Snap boot onto plug, Make sure fit is tight.

For connectors and battery terminals

1.Make sure the ignition system is off

2.Clean surfaces with appropriate cleaner such as Permaterx

   Brake and Parts Cleaner or Battery Cleaner.

3.Coat both parts with grease.

4.Reassemble

PROPERTIES OF UNCURED MATERIAL

                                                           Typical Value

Chemical Type                       Silicone dielectric compound

Appearance                               Slightly translucent white

Specific Gravity                                        1.03

Flash Point COC ℃(℉)                        >2660(>500)

GENERAL INFORMATION

This product is not recommended for use in pure oxygen

and/or oxygen rich systems and should not be selected

for use with chlorine or other strong oxidizing materials.

For safe handling information on this product, consult

the Material Safety Data Sheet, (MSDS).

STORAGE

Products shall be ideally stored in a cool, dry location in

unopened containers at a temperature between 8 to 28

℃(46 to 82 ℉)unless otherwise labeled, Optimal storage

 is at the lower half of this temperature range. To prevent

contamination of unused product, do not return any mat

erial to its original container.

NOTE

The data contained herein are furnished for information

only and are believed to be teliable, We can not assume

responsibility for the results obtained by others over whose

methods we have no control. Permatex, Inc. specifically

disclaims all warranties expressed or implied, including

warranties of merchantability or fitness for a particular

purpose, arising from sale or use of Permatex, Inc.

products and disclaims any liability for consequential or

incidental damages of any kind, including lost profits.

This product may be covered by one or more United States

or foreign patents or patent applications.
